Air Cooled AfterCooler

Compressed air is a necessary energy source in industrial operations, commonly used to drive pneumatic tools and automated equipment. The compression process generates significant heat, which can reduce system efficiency and place excessive stress on air-powered machinery. High discharge temperatures may cause lubricant breakdown, accelerated wear of sealing components, and increased moisture content within the air supply.

To address these operational challenges, air-cooled aftercoolers are an essential component of modern compressed air systems. By lowering air temperature before it reaches downstream equipment, aftercoolers improve air quality, protect system components, and provide stable performance. Their importance is especially pronounced in hot regions, where elevated ambient temperatures and continuous industrial activity demand effective thermal control solutions.

Key Feature

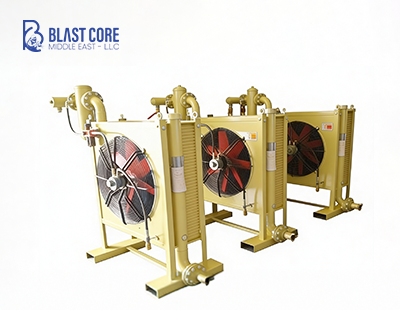

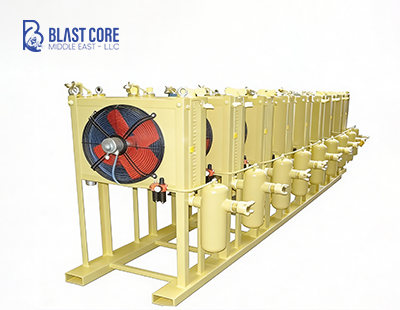

Blast Core air-cooled aftercoolers are available in both electrically and pneumatically operated configurations and utilize ambient atmospheric air to reduce compressed air temperature. The system effectively cools the compressed air to approximately 9–10°C above the surrounding ambient temperature.

What Is an Air-Cooled Aftercooler?

An air-cooled aftercooler is a heat exchange system designed to reduce the temperature of hot compressed air and remove moisture vapor from the air stream. Cooling the air after compression improves air quality and prepares it for industrial applications that require clean, dry, and temperature-controlled air. The aftercooler helps prevent issues such as corrosion, seal degradation, and reduced equipment efficiency caused by excessive heat and moisture. In high-temperature environments, effective aftercooling is essential to protect downstream equipment and maintain stable system performance. This makes air-cooled aftercoolers particularly important in regions like Abu Dhabi, where compressed air systems operate under elevated ambient conditions.

Importance of Air Aftercoolers in Abu Dhabi’s Industrial Sector

Abu Dhabi’s industrial sector depends extensively on compressed air systems to support manufacturing, construction, and processing operations. The region’s high ambient temperatures and humidity levels significantly increase thermal stress on compressed air, accelerating component wear and reducing system efficiency. Excess heat and moisture often result in equipment malfunctions, unplanned downtime, and higher maintenance costs.

To make sure continuous operations, the integration of air-cooled aftercoolers is essential for industrial facilities. By reducing discharge air temperature and controlling moisture content, aftercoolers protect pneumatic equipment, improve overall performance. For businesses operating in Abu Dhabi, air aftercoolers are a necessary investment in operational stability and long-term equipment longevity.

Working Principle of Air-Cooled Aftercoolers

The main purpose of an air-cooled aftercooler is to lower the temperature of compressed air and prevent performance issues associated with excessive heat. This temperature reduction is achieved through a controlled thermal transfer process, where heat is dissipated from the compressed air to the ambient environment. The following explains the operating process of an air-cooled aftercooler:

Heat Dissipation: High-temperature compressed air discharged from the air blower is routed into the air aftercooler, where it flows through finned coils or heat exchange tubes. Ambient air passes across these surfaces, allowing thermal energy from the compressed air to be released into the surrounding atmosphere, thereby reducing air temperature.

Condensate Separation: The reduction of compressed air temperature creates moisture vapor, which, within the air, condenses into liquid form. This condensate is efficiently separated from the air stream using a moisture trap or centrifugal separation mechanism to make sure cleaner and drier compressed air output.

Final Air Purification: Following the cooling and moisture separation stages, the compressed air is directed through secondary filtration units. These filters eliminate residual oil particles and remaining contaminants by delivering compressed air that meets quality requirements for industrial applications.
